Wood pellet tanks

VRAC PLUS > Wood pellet tanks

Pellet blower trucks – wood pellets

You wish to deliver wood pellets to individuals or communities ?

VRAC PLUS has been offering tanks for the bulk delivery of wood pellets for over 10 years.

pellets  are a product that requires particular vigilance during transport and delivery.

VRAC PLUS offers an innovative solution to meet the specificities wood pellet delivery Installation on carrier (18-19 T carrier) , 6×4 / 6×2  carrier 26 T carrier )  and 8×4 / 8×2  carrier ( 32 T ) : our tanks are modular to suit adapt to your needs.

Discover some examples of wood pellet tank configurations

Tank on carrier 18 T

bulkplus-tank-on-carrier-18T

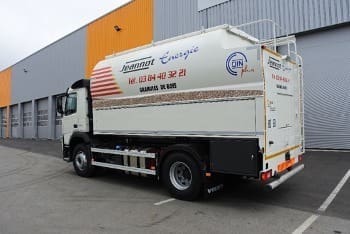

Tank on carrier 19 T

bulkplus-tank-on-carrier-19T

Tank on carrier 26 T

bulkplus-cistern-on-carrier-26T
bulk-plus-access-delivery

Access to the delivery location

Our tanks are…

  • Compact
    for access to storage locations for individuals, residences or communities

  • Modular
    in height, width and length as well as according to the configurations of the carriers (wheelbase, overhang, etc.)

  • Compartmented (or semi-compartmentalized)
    for better distribution of the wearer's load

bulk-plus-dust-protection-delivery

generation of dust during deliveries

  • Scraper screw with polyamide bottom
    to transport the pellets without damaging them

  • Horizontal stainless steel cell hatches
    operated by cylinders placed outside the tank, in order to segment the extraction: only the product to be delivered is in movement

  • High-performance blower system
    with specific characteristics for preserving the integrity of the pellets

  • Dust vacuum cleaner
    delivered with the tank

bulk-plus-ergonomics-safety

Ergonomics and safety of implementation

  • Centralized control of screws and equipment

  • Wireless radio control
    allowing flow adjustment and remote system shutdown

  • For the transport of blower hoses,
    possibility of creating side boxes or installing side ducts

  • Rear access ladder
    with safety guardrail on side walkway

bulk-plus-weigh-on-board

 Class III on-board weighing approved

  • Commercial precision for individual invoicing
    We carry out the initial inspection at the end of the bodywork, so the vehicle is ready to deliver

  • A weighing indicator allows the weight delivered to be displayed during delivery
    and a weighing ticket can thus be given at the end of the delivery

Many possible options

  • Reversing camera with screen in the cabin;

  • Repeater…

From 8 to 14 tonnes of payload , depending on the carrier brand and technical specifications of the tank.

We can also offer this type of tank with a cradle system, which can be handled by a polytender .

QUESTIONS? OTHER DESIRED OPTIONS?

Contact our sales department!
